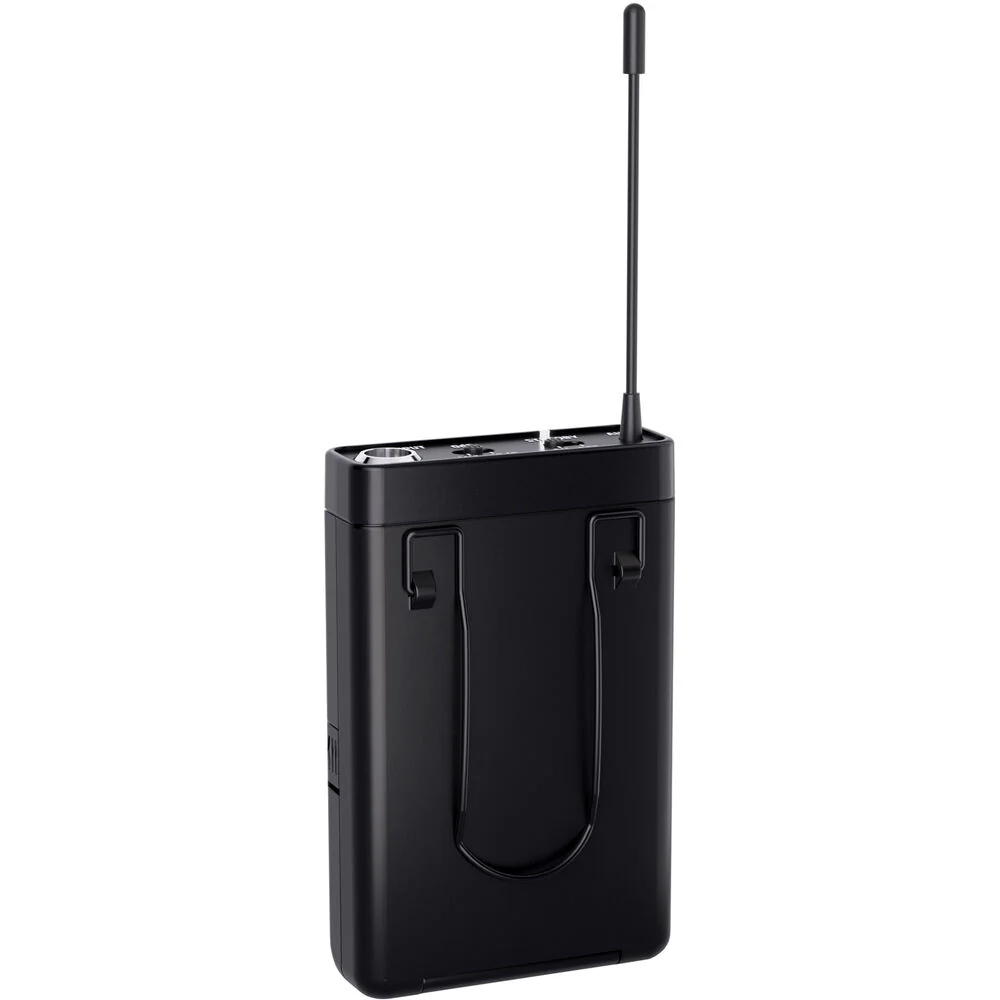

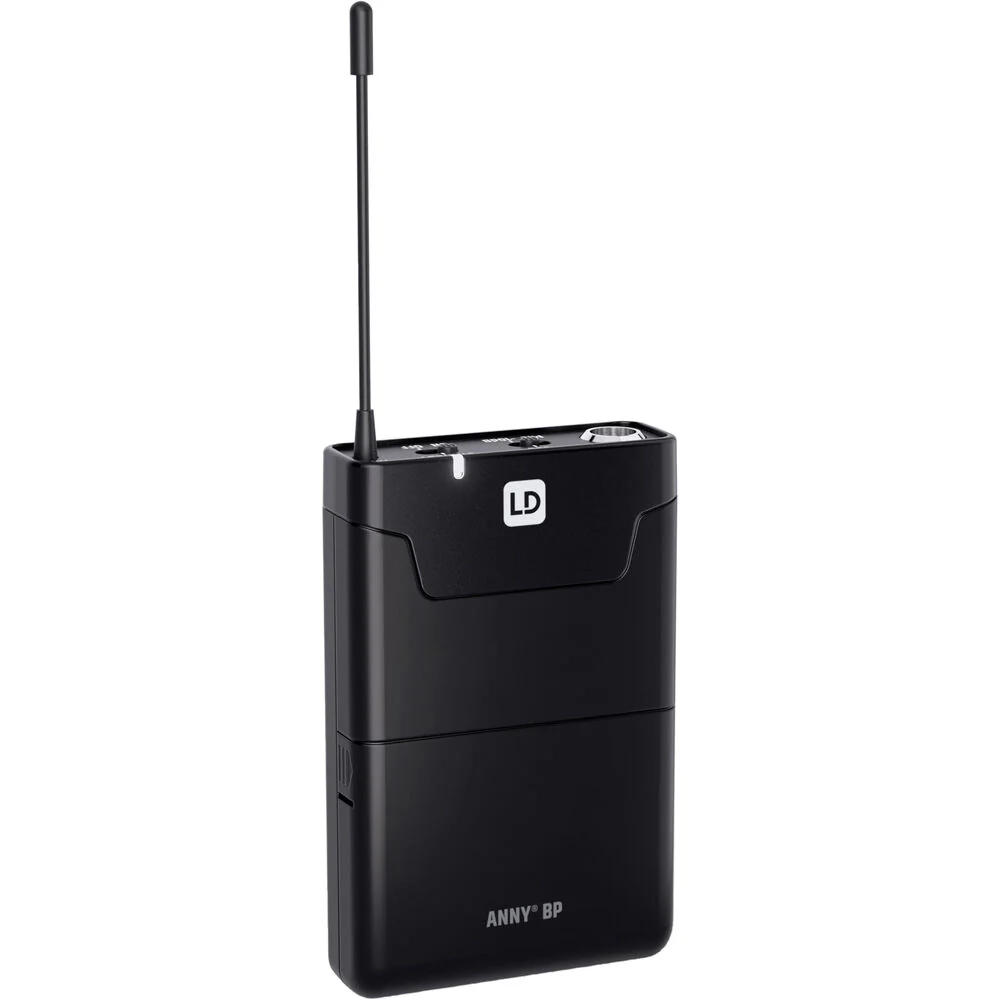

LD Systems ANNY BP Wireless Bodypack Transmitter for ANNY PA System (B47: 470 to 490 MHz)

LD Systems ANNY BP Overview

The ANNY BP from LD Systems is a wireless bodypack transmitter designed for use with ANNY 10 and ANNY 8 PA systems equipped with the ANNY R wireless receiver module. The transmitter operates in the 470 to 490 MHz band in the UHF range and features 10mW of RF output power, helping to ensure reliable performance at a range up to 262'. Its 3-pin mini XLR connector (TA3M) supplies 5V plug-in power and accommodates a wide range of compatible lavalier and headset microphones (available separately), including the WS 100 MH 1 headset from LD Systems.

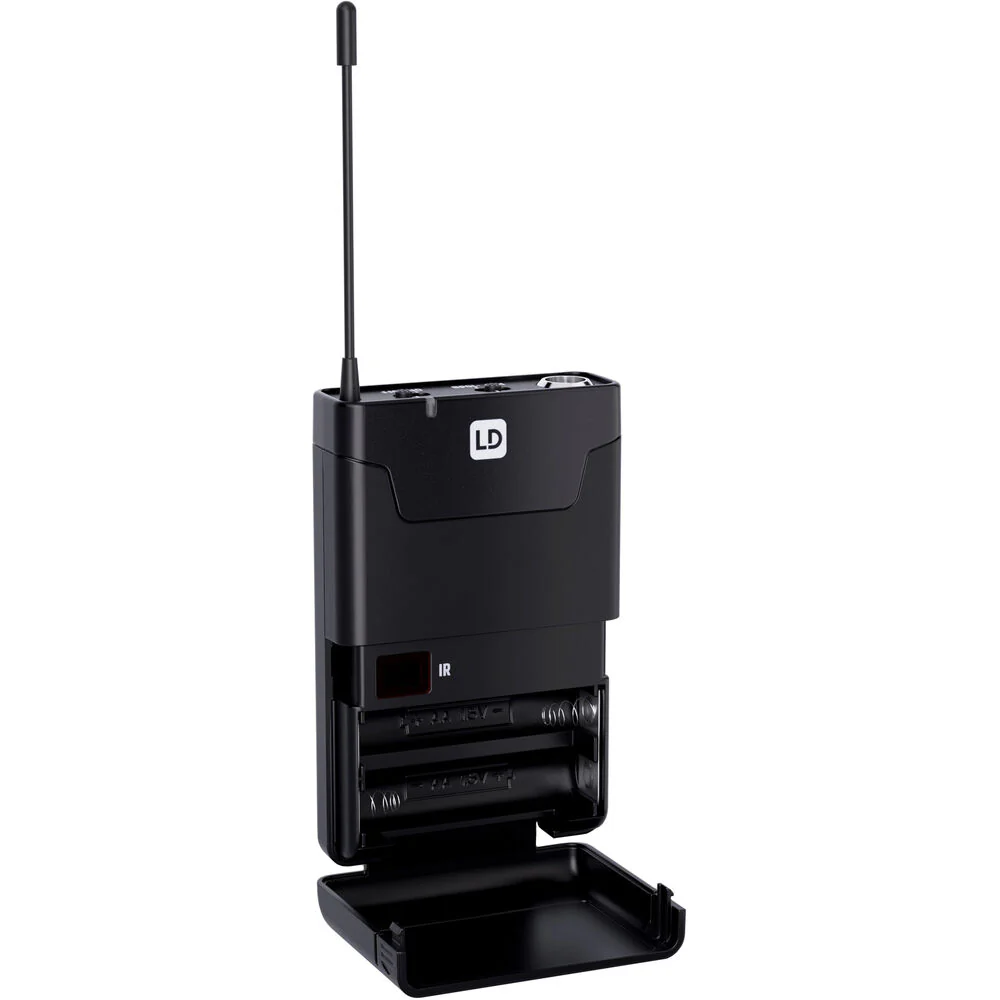

The unit syncs quickly and easily to the receiver via infrared and will run for up to 8 hours on the 2 supplied AA batteries. A status LED glows white when switched on and red when the battery is low. The power switch also provides a standby function for temporary muting, ideal when you want to take a quick break without having to switch the unit off completely.

Features

• Bodypack transmitter with 2 AA batteries

• For use with ANNY PA equipped with wireless receiver module

• Up to 262' range

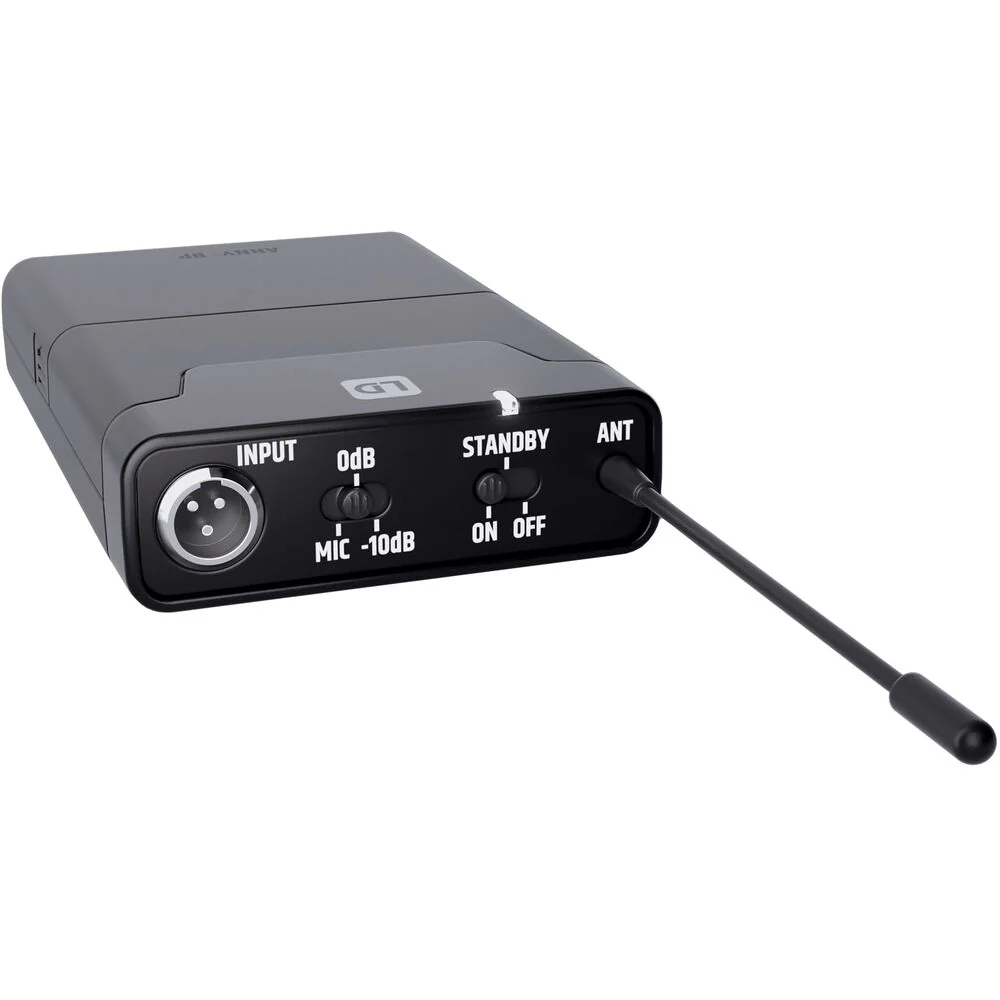

• TA3M Mini XLR input for microphone or instrument cable

• 8 hours operating time

• Input level switch (MIC, 0 dB, -10 dB)

• Standby mode

• Integrated status LED
