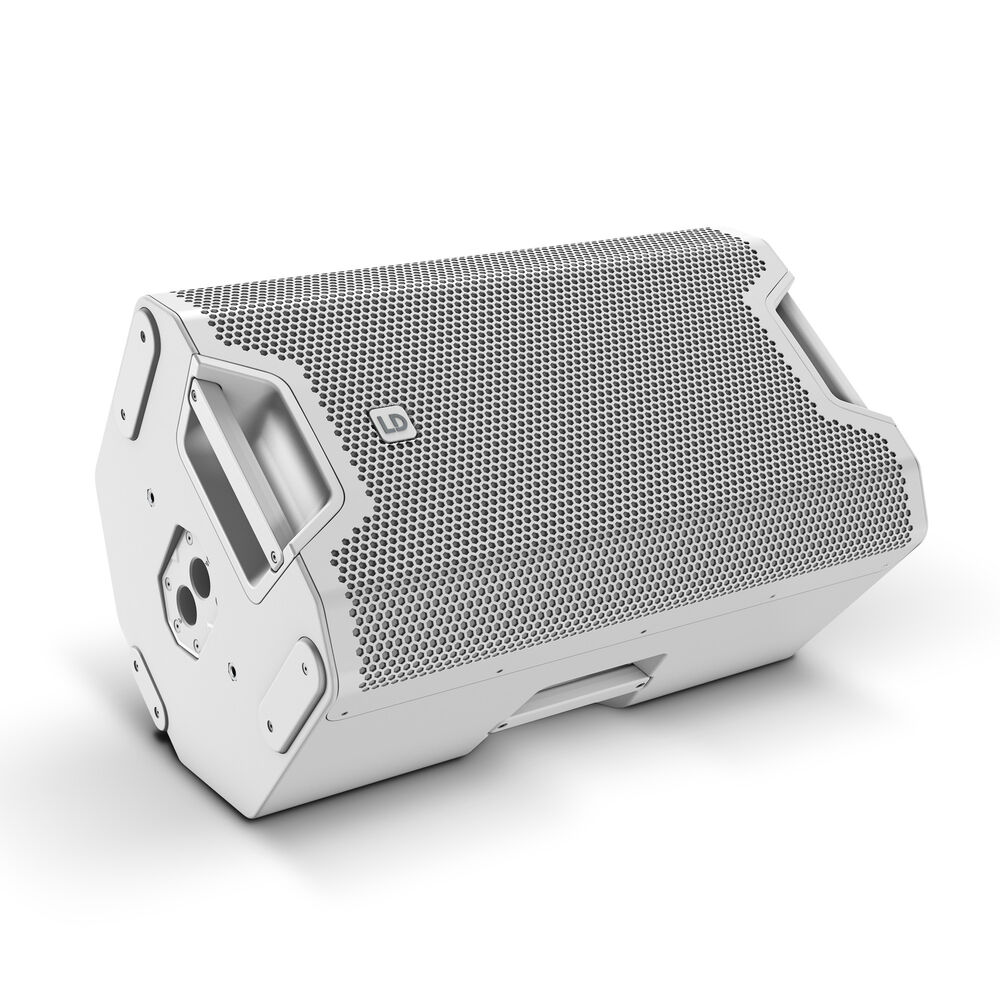

LD Systems ICOA 15 A 15" Powered Coaxial PA Loudspeaker (White)

LD Systems ICOA15AW Overview

Enjoy premium full-range sound with the LD Systems ICOA 15 A, a well-rounded 15" powered coaxial speaker that features a rotating, BEM-optimized CD horn and extensive precisely calibrated DynX DSP presets, making it a great choice for musicians, bands, entertainers, and dance schools. The speaker provides outstanding bass reproduction without the need for a subwoofer.

The integrated 1200W (peak) Class-D amplifier drives the 15" woofer and 1" high-frequency driver, which combine to offer a frequency response of 48 Hz to 20 kHz and a maximum SPL of 128 dB. The speaker can be used vertically or horizontally, thanks to the rotatable CD horn. The bottom of the speaker includes a dual pole cup that allows you to deploy at 0 or 5° for better coverage of seated patrons. The six fly points allow you to fly the speaker in any orientation.

Features:

• Flexible speaker for full-range, satellite, and monitor applications

• Two-way speaker with 15" woofer

• 128 dB max SPL and 300W RMS power handling (1200W peak)

• Coaxial design with rotatable BEM-optimized CD horn for vertical and horizontal use

• Horn-loaded woofer

• DynX DSP with four presets featuring three-band equalizer (EQ) and delay function

• Two line/mic input channels with individual gain controllers, 3.5mm jack input, plus mono mix output

• Dual-tilt stand connection with a tilt angle of 0 and 5°

• Enclosure features 55° angled side for sturdy floor monitor applications

• Shockproof front grille for the best speaker protection

• Four aluminum handles with ergonomic, rubberized surface

• Comprehensive range of optionally available accessories for installation and transport

DynX DSP Presets for Quick and Easy Setup

Presets

• Full Range: For use on a tripod or pole and facing toward your audience

• Monitor: For use as a stage monitor facing toward you

• Satellite: For use with a separate subwoofer

• Flat: Flat-frequency response. Great when setting custom EQ settings

EQ

• High EQ: setting treble frequencies from -10 to +10 dB

• Mid EQ: setting mid frequencies from -10 to +10 dB

• Low EQ: setting bass frequencies from -10 to +10 dB

Delay

• For alignment with subwoofers and delay lines

• Delays audio signal in 0.32' steps up to 32' (0' = OFF, display in meters and feet)

Flexible Applications and Configurations

Floor Monitor

• Use on its side

• Use vertically

Main PA

• Suspended from rigging (6 x M10 rigging points)

• Placed on a tripod stand

• Placed on a pole mount on top of a subwoofer
