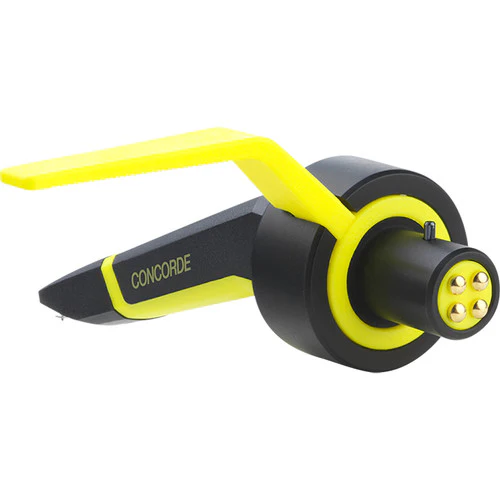

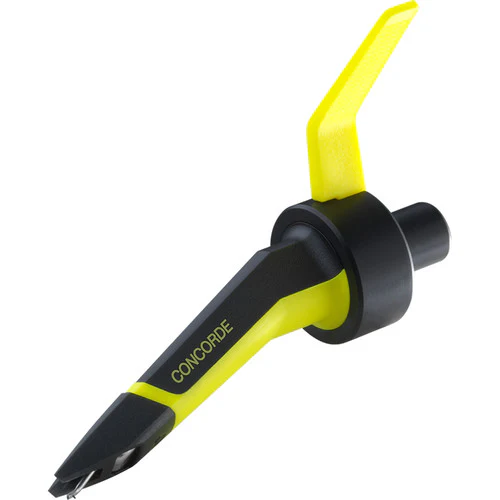

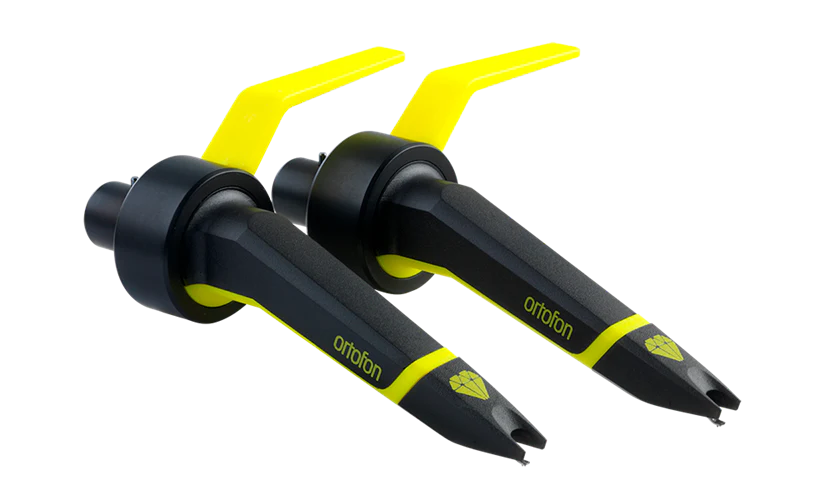

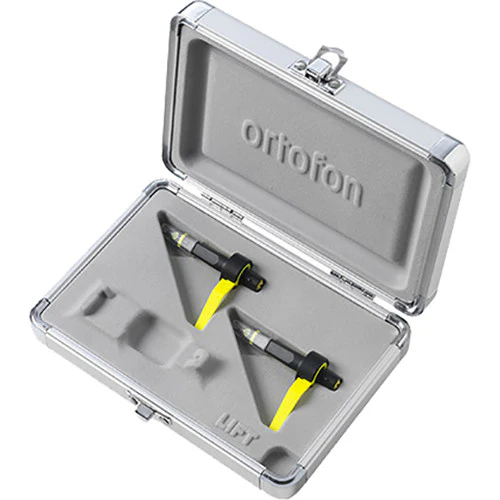

Ortofon Concorde MK2 Club Twin Cartridge

The best sound quality achievable for traditional vinyl playback

The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club.

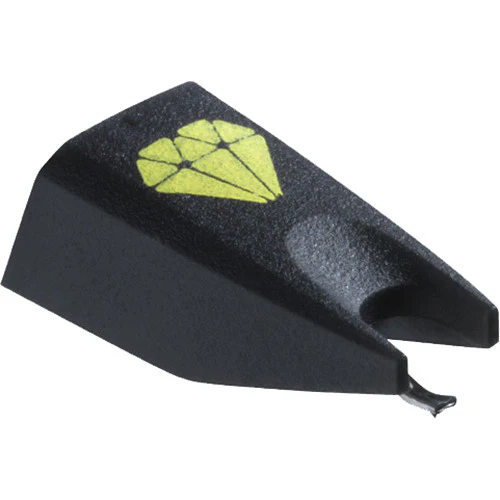

• The CLUB features a Special-Elliptic stylus that allows for detailed sound quality: Special-Elliptic stylus fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.

• The CLUB’s 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.

Stylus Type : Special Elliptical

Tracking Force: 3.0 g

Output Voltage: 8 mV

Frequency Range: 20–20.000 Hz

 Features:

Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Special Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Internal impedance, DC resistance -  1000 Ohm
Internal inductance -  650 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-600 pF
Cartridge weight - 18,5 g
