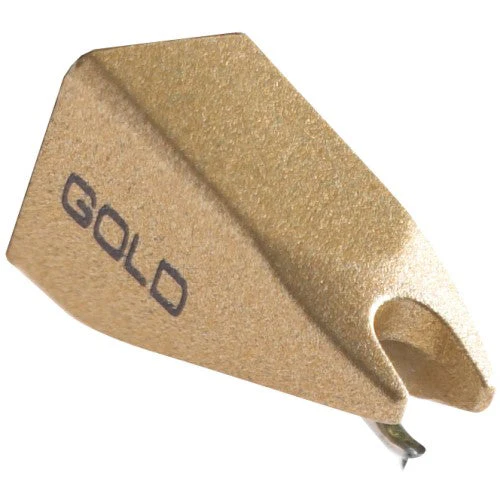

Ortofon Gold Replacement Stylus (Open Box)

The Ortofon Gold Replacement Elliptical Stylus replaces the stylus on the Gold OM and Concorde series cartridges.

Features:

• Output voltage at 1000Hz, 5cm/sec. -   6 mV
• Channel balance at 1kHz  -  1,5 dB
• Channel separation at 1kHz  -  23 dB
• Channel separation at 15 kHz  -  15 dB
• Frequency response  -  20-20.000 Hz +/- 2dB
• Tracking ability at 315 Hz at recommended tracking force  -  80 μm
• Compliance, dynamic lateral  -  7 μm/m N
• Stylus type -   Special Elliptical
• Stylus tip radius -   r/R 13/25 μm
• Tracking force range  -  2.0-5.0 g (20-50 mN)
• Tracking force recommended  -  3.0 g (30 mN)
• Tracking angle  -  20°
• Internal impedance, DC resistance -   750 Ohm
• Internal inductance  -  450 mH
• Recommended load resistance  -  47 kOhm
• Recommended load capacitance  -  200-600 pF
• Concorde cartridge weight  - 18.5 g
