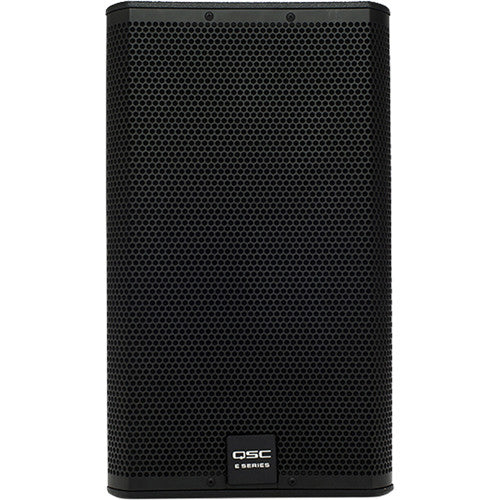

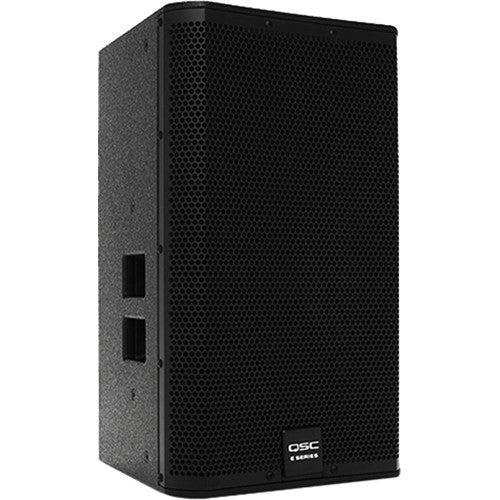

The blackĀ QSC E112Ā is a trapezoidal, two-way loudspeaker, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E112 requires an amplifier with a minimum of 400W continuous (1600W peak) to power the 12" woofer and 1" compression driver that combine to offer a frequency response of 64 Hz to 20 kHz (-6 dB) with a peak SPL of 128 dB. QSC recommends the use of a DSP speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC's GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement (with and without subwoofers), stage monitoring, dance music, and karaoke.

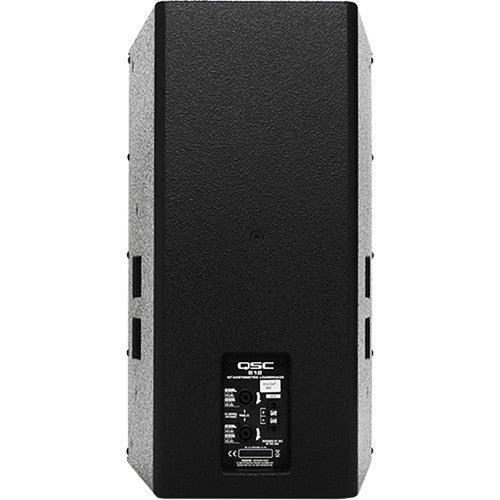

The 15mm, 11-ply enclosure provides a direct-match-transition (DMT) coverage angle of 85Ā°, which is suitable for most medium and medium-to-long-throw applications. An all-metal, dual-angle, 35mm socket allows the loudspeaker to be mounted vertically on a pole or angled down by 10Ā° to improve audience coverage and reduce rear wall reflections. Multiple mounting options using E Series Yoke or M8 eyebolts (sold separately) are supported. Input connections include dual NL4 as well as screw terminal receptacles.
