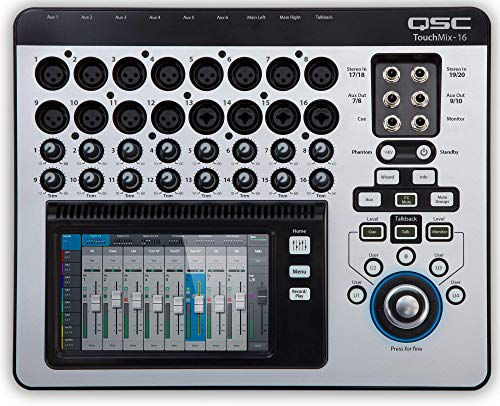

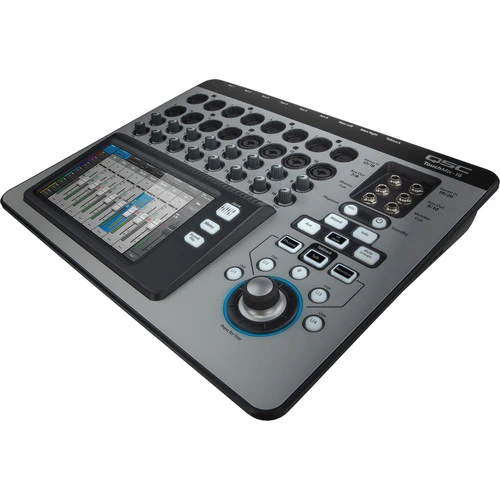

QSC TouchMix-16 Compact Digital Mixer with Bag

QSC TM-16 Overview

The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.

The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)

TRS Aux outs drive wired In Ear Monitors (IEM) directly

4-band full parametric EQ, variable high-pass and low-pass filters on all input channels

Gate and compressor on all input channels

4 stereo DSP effects plus a pitch corrector

1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs

8 DCA and 8 Mute groups

Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation

Wizards, info and preset libraries assist you with channel setup, effects selection, and more

Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair

Remote control via mobile devices. Wi-Fi interface included
